Geometric waveguides are optical structures that guide light primarily through their physical shape and geometry, rather than relying only on refractive index differences or holographic/diffractive structures. They use controlled reflections inside a precisely shaped channel to move light while preserving its direction, brightness, and image structure. Geometric waveguides are a critical building block for AR/VR displays and head-up displays, especially where privacy, brightness, and image quality are important.
How Geometric Waveguides work

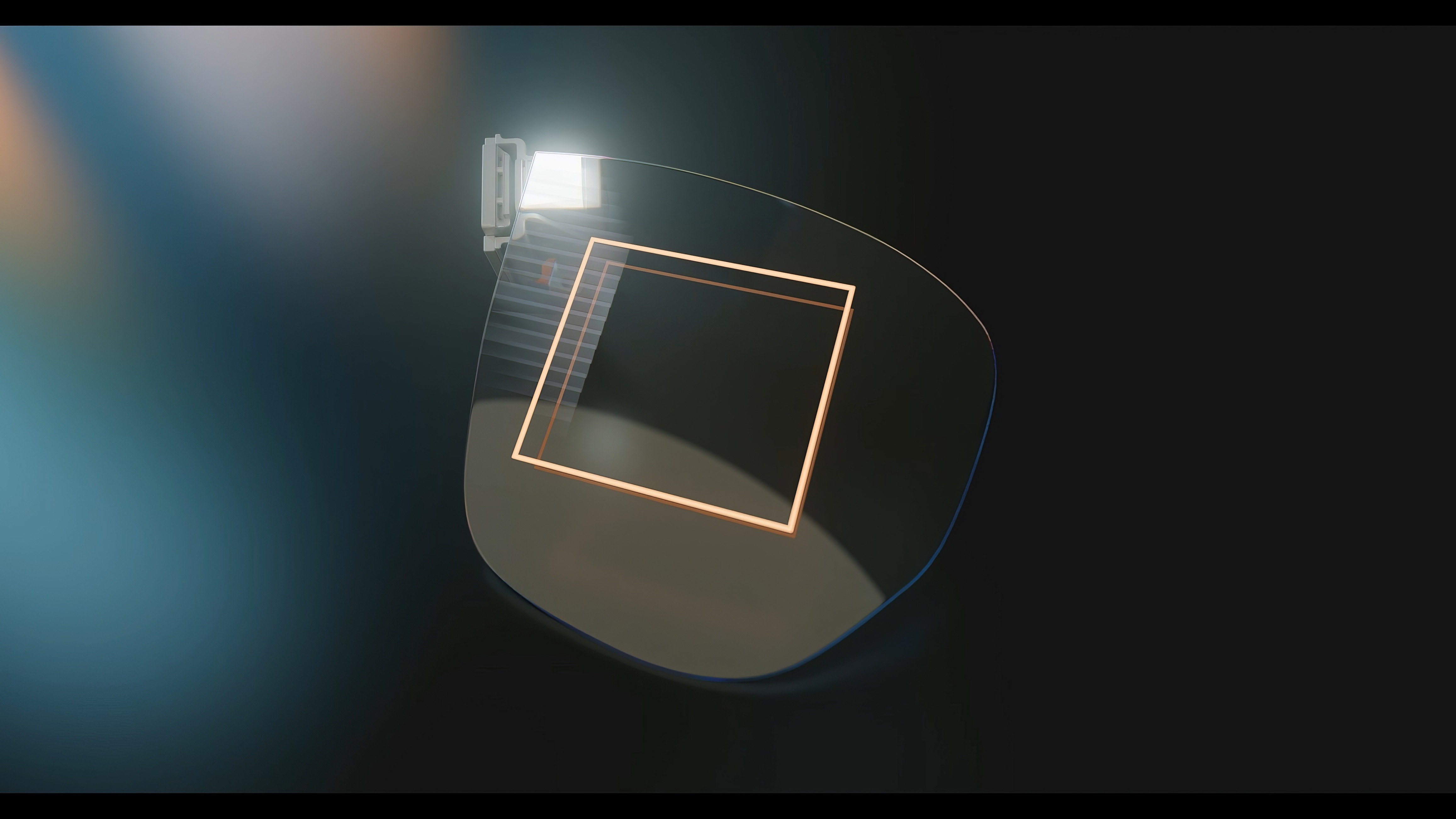

A geometric waveguide is a solid optical component—typically glass or polymer—designed so that light is guided through it by a combination of internal reflections and carefully engineered surfaces. The “geometric” part refers to the coupling out via a simple array of partially reflective mirrors that resemble geometric shapes. At their core, geometric waveguides rely on controlling light with angles, surfaces, and internal reflections. It starts with injecting light into the guide from a micro-projector. They’re called “geometric” because they work purely with macroscopic geometry and classical (geometrical) optics elements, rather than with micro‑/nano‑scale diffractive structures.
Core idea
In AR, geometric waveguides guide and expand the image using stacked mirrors or beam‑splitters at specific angles and positions inside a glass substrate, so light propagation can be described with straight rays, reflections, and refractions (Snell + TIR) – i.e., geometrical optics.
By contrast, diffractive waveguides use surface‑relief gratings / holographic optics where the key interaction is diffraction from periodic micro‑/nano‑structures, so the design lives in Fourier/EM domain more than in simple ray geometry.
Why the “geometric” label stuck
The label emphasizes that the image replication and eyebox expansion are done via an array of discrete reflectors/beam‑splitters whose performance follows ray‑tracing rules, not grating equations.
Fabrication uses “conventional” optical and thin‑film processes on comparatively large, flat surfaces (mirrors, prisms, combiners), with no need to etch dense periodic features, which is another reason they’re grouped under geometric rather than diffractive.
How geometric waveguides work:
Injection: Light enters the guide through a coupler such as a prism, micro-optic element, or grating.
Transport: Once inside, the geometry forces the light to bounce along defined paths. Some guides use total internal reflection; others use coated or angled surfaces.
Extraction: Light leaves the waveguide at a designed location via the simple array of partially reflected mirrors.
Unlike diffractive or holographic waveguides, which manipulate light through microscopic grating structures, geometric waveguides do their work through macroscopic optical elements: simple flat surfaces including partially reflective mirrors. The integrity of the signal is preserved.
Geometric vs Diffractive waveguides
Geometric Waveguides:
- Use arrays of partially-reflective mirrors within the glass exit the light directly toward the user’s eye.
- Each mirror or surface is tuned for specific angles, distributing light evenly to the “eye box” (where the user’s pupil sits).
- Colors remain true and undispersed, as the mirrors reflect all wavelengths in the same direction.
Diffractive Waveguides:
- Rely on nanoscale surface or volume gratings formed via lithography or holography (“diffractive gratings”).
- These gratings split and bend light using diffraction, sending different wavelengths in different directions; output light passes through the grating, which can cause color dispersion (“rainbow effect”). For this reason, color management in diffractive waveguides is very difficult to control.
Key Optical Differences
| Feature | Geometric Waveguides | Diffractive Waveguides |
| Coupling in/out | Reflection by mirror/prism arrays | Diffraction by nanoscale gratings |
| Spectral Fidelity | Industry-leading color uniformity | Color splitting, dispersion (rainbows) |
| Privacy (Eye Glow) | Minimal outward leakage, private | Very high outward projection and visible display |
| Optical Efficiency | High, bright, daylight readable | Lower, often less bright, esp. outdoors |
| Field of View | Large possible with wide eye box | FOV limited by refractive index |
| Manufacturing | Simple planar surfaces | Lithography/holography for fine details |
Lumus geometric waveguides
Lumus geometric waveguides are unique in several critical ways, especially compared to more common diffractive technologies.
Key Advantages of Lumus waveguides:
Daylight Readability and Brightness: Lumus waveguides deliver exceptionally high brightness, up to 10 times greater luminance efficiency than competing waveguides. This makes AR displays usable outdoors and in surgical or industrial settings where lighting is intense, but battery capacity is limited.
Superior Color Uniformity and True White: Unlike diffractive waveguides, geometric waveguides use arrays of partially reflective mirrors inside thin glass, preserving the fidelity of the RGB spectrum and keeping whites truly white, not shifted or rainbowed. This yields consistency and realism for overlays.
Privacy by Design: Because light is channeled directly toward the wearer’s eyes (not scattered by microstructures), almost no light leaks outward—eliminating “eye glow” or ghost images visible to bystanders. This ensures user privacy and comfort in social and professional settings.
Thin, Fashionable Form Factor: Lumus waveguides enable very thin, lightweight lenses suitable for designer eyewear—sometimes under 2 mm thick. This supports all-day wear and consumer adoption. Lumus waveguides power Meta’s commercially available AR glasses.
Large Field of View (FoV): The technology offers immersive wide FoV (up to 70° expected), more than most alternatives, while maintaining image clarity and battery savings.
High Optical Efficiency: Reflective waveguide systems direct light efficiently, which means longer battery life. This makes Lumus-based eyewear practical for all-day use without frequent recharging.
Distortion-Free Real World: The reflective design preserves natural vision, maintaining a distortion-free view through the lens, helpful for both AR overlays and real-world awareness.
Scalability for Manufacturing: Recent advances (by partners like SCHOTT and Quanta) now enable mass production at scale and lower cost, making Lumus waveguides ready for mainstream consumer, medical, and military AR applications.
In sum, Lumus geometric waveguides set the benchmark for AR image quality, battery life, privacy, and form factor—making them the gold standard for consumer, medical, and industrial AR glasses as of 2025.
| Feature | Lumus Geometric Waveguide | Diffractive Waveguide |
| Image efficiency | Highest (up to 10x) | Lower, more energy |
| Color uniformity | True white, no rainbows | Often color fringing, artifacts |
| Eye glow/ privacy | Minimal / light contained | Notable outward leakage |
| Field of view | Wide (20° to 70°) | Sometime large, but less efficient |
| Lens thickness | Very thin (.8 to 1.7mm) | Typically thin (1 to 3mm) |
| Outdoor readability | Excellent | Often washed out in sunlight |
| Battery performance | Superior, extended wear | Shorter runtime |
| Scaling / manufacturing | Scalable (SCHOTT, Quanta others TBD) | Long-standing, but lower efficiency |
Frequently Asked Questions
Are geometric waveguides efficient?
Yes. Typically, they are 5X-10X more efficient than diffractive alternatives.
Do geometric waveguides support full color?
Yes. Since they are not wavelength-selective, they are naturally broadband. However, brightness and uniformity can still vary across RGB.
Are they used in AR glasses?
Yes—several consumer and enterprise AR devices rely on geometric or reflective waveguides. Lumus’ geometric waveguides are available in Meta’s commercial AR glasses.
What determines the field of view?
The angles of confinement, the coupler geometry, and the physical thickness/shape of the guide.
How are geometric waveguides different from diffractive waveguides?
Geometric waveguides use principles of classical geometry and reflection to manipulate light. Light is guided by Total Internal Reflection (TIR) and coupled out by an array of microscopic, semi-reflective mirrors (or beam splitters) embedded inside the glass substrate. Manufacturing involves high-precision thin-film coating, polishing, and bonding/lamination processes (similar to traditional lens making). No exotic materials are neccessary. The outcoupling element are partially reflective mirrors/coatings.
Diffractive waveguides use principles of diffraction to manipulate light, relying on tiny, nano-scale structures etched onto or embedded in the glass surface. Light is guided and coupled out by nanoscopic periodic structures called gratings (either Surface Relief Gratings or Volume Holographic Gratings), which bend and split the light. Manufacturing involves advanced lithography or nanoimprint processes. The outcoupling elements are Nano-gratings (periodic structures).
